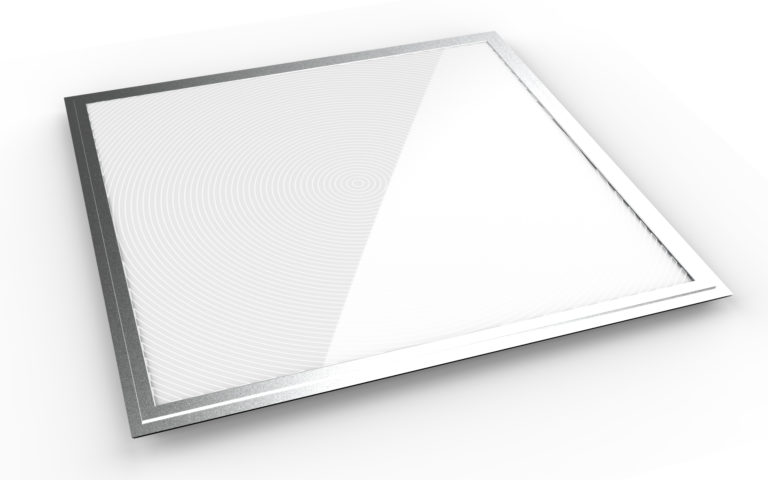

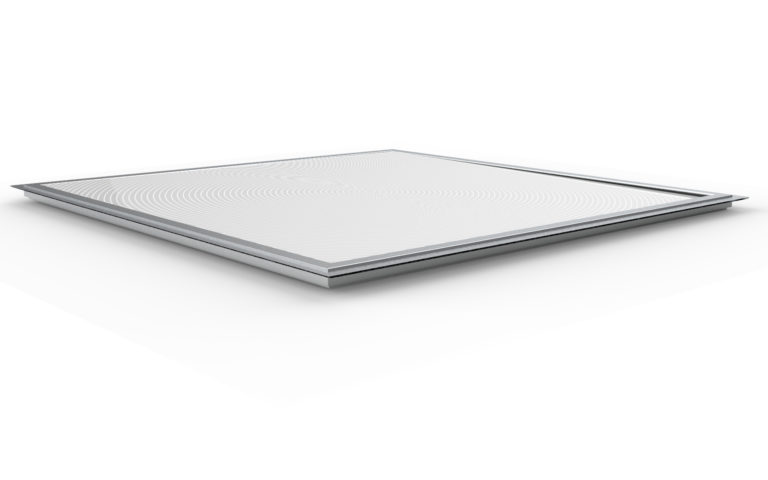

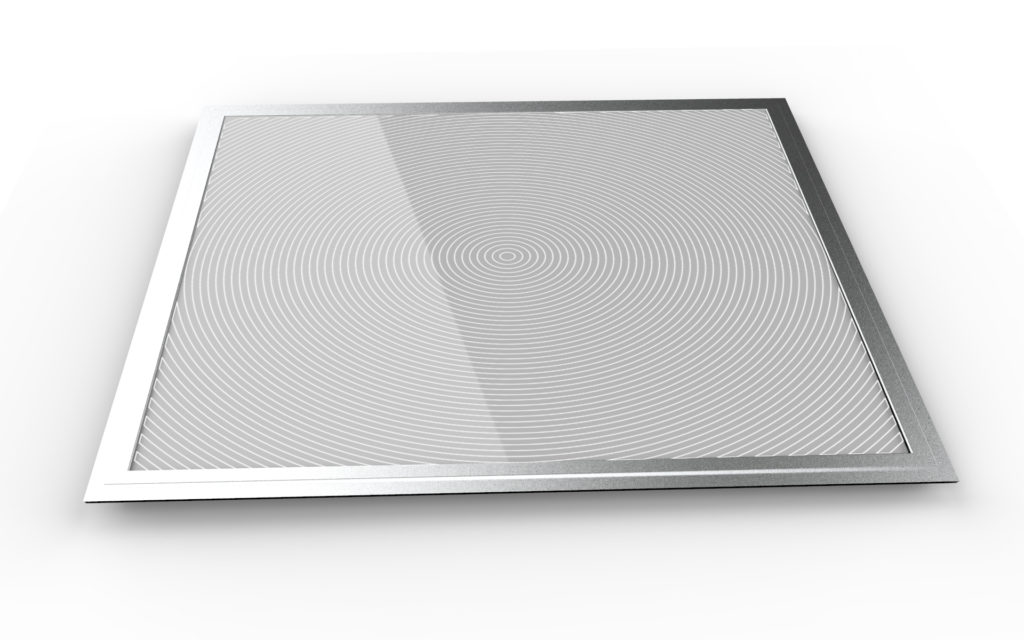

LED Panel Patterned / Circle

Our patented LGP technology enables us to produce patterned LED Panels of TLT that can distribute the light which comes through the light spreading material, homogenously on the surface.

On the contrary of the conventional method (which is enlightening from the back), patterned TLT Panels are based on the principal of enlightening from the edge.

The highlight of patterned TLT LED Panels is they can be produced all the sizes in the range of 120cm*240 cm with our patented LGP technology.

Technical Data

Dimension (mm)595x595x16 mm
Weight (kg)3 kg
Input Voltage (V-AC)220-240 V AC 50-60hz
Light SourceOSRAM LED
DriverPhilips
Power Consumption (watt)30 W
Color Temperature(Kelvin)3000K, 4000K, 6500K
Lifetime (hour)50.000 h (L₇₀)
Ambient Temperature (°C)-25°C- / +45°C
Luminous Flux (lm)2.750 lm
Efficiency (lm/W)92 lm/W
Color Rendering Index (CRI)≥ 80 (typ.85)
Warranty (Year)3 Yıl

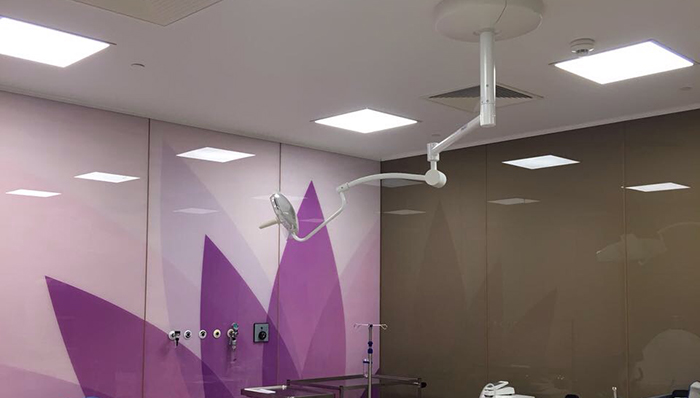

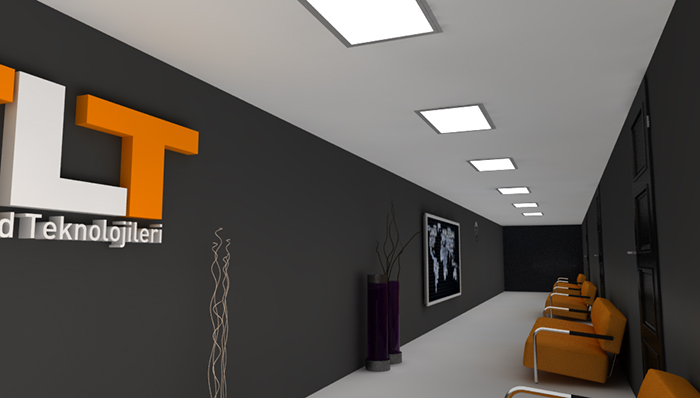

Application Examples

E-Catalog

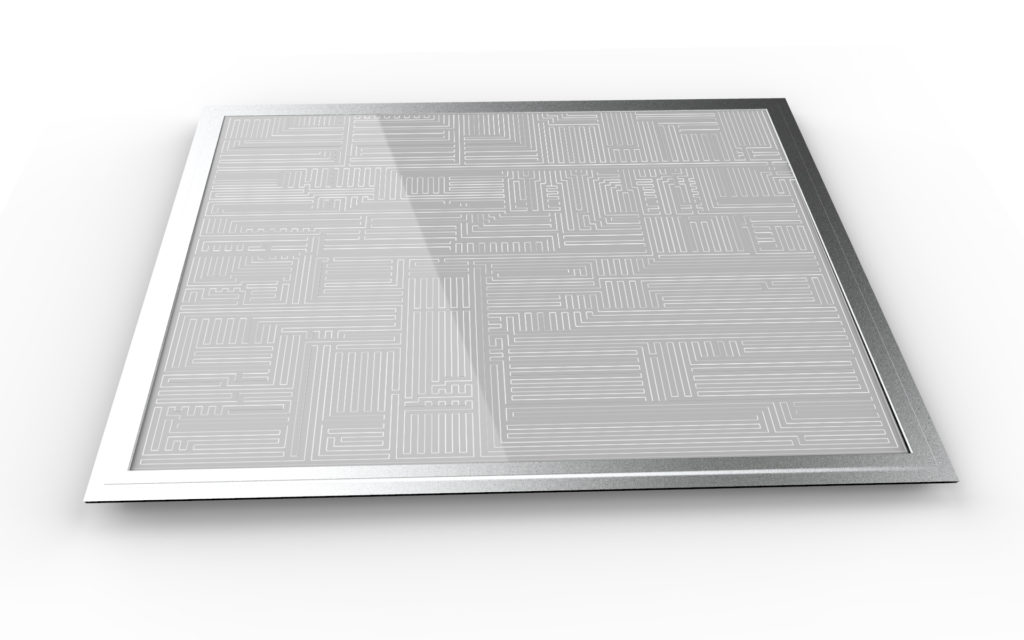

Other Products
